Panel Type Custom Air Filters , Mini Pleated Hepa High Efficiency Particulate Air Filter

Panel Type Custom Air Filters , Mini Pleated Hepa High Efficiency Particulate Air Filter

MOQ: 50 pieces
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 500 pieces per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Nama merek
Zhisheng
Sertifikasi
ISO 9001, Rohs
Model Number
ZS-GB-595
Frame:
aluminum
Media:
Fiberglass
Size:
610*610*69
Type:
Panel type
Separator:
polyurethane
Class:
H13
Minimum Order Quantity:
50 pieces
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
500 pieces per month
High Light:

air purifier filters

,

air purifier washable hepa filter

Product Description


Panel Type Fiberglass Mini Pleated Air Purifier H13 Hepa Air Filter

Description:

It is mainly used to catch dust particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration systems.

Applications:

It is an ideal terminal filtering device for the clean-up system of FFU, clean bench, clean booth, clean room etc.
It is extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron,
semiconductor, precision mechanism, pharmacy, hospital and food, etc., which required relatively high cleanliness
factors.

Material and operating conditions:


External frame Cardboard, aluminum alloy or GI
Sealant Polyurethane
Separator hot-melt
Filter media PP, PP/PET, fiberglass or HV fiberglass
Maximum operating temperature 80°C
Maximum operating humidity 80%
HEPA filter Efficiency ≥95%-99.995%



Features:

1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany

Size and Specification:


Model Dimensions(mm)

Rated air flow

(m³/h)

Initial resistance

(Pa)

Efficiency
(MPPS)

ZS-GW305-1 305x305x50 180 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW305-2 305x305x69 250 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-1 610x610x50 700 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-2 610x610x69 1000 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-1 915x610x50 1100 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-2 915x610x69 1500 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW1220 1220x610x69 2000 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW305-2 305x305x80 300 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-3 610x610x80 1300 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-3 915x610x80 1900 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-3 915x610x90 1900 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)

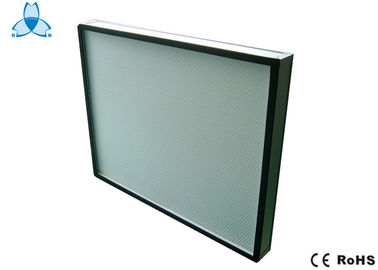

Pictures of HEPA filter

Panel Type Custom Air Filters , Mini Pleated Hepa High Efficiency Particulate Air Filter 0


Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:

Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
