Galvalume Frame Hepa Filter Fan , Hepa Filter Unit Project With T - Bar W1170 X D570 X H69mm

Galvalume Frame Hepa Filter Fan , Hepa Filter Unit Project With T - Bar W1170 X D570 X H69mm

Galvalume Frame Hepa Filter Fan , Hepa Filter Unit Project With T - Bar W1170 X D570 X H69mm

Detail produk:

Place of Origin: Guangdong, China (Mainland)
Nama merek: Zhisheng
Sertifikasi: ISO9001
Model Number: ZS-FFU1170

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 10 sets
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500set per month
Hubungi sekarang
Detil Deskripsi produk
Size: W1170x D570 x H240mm Material: Galvalume
Noise: ≤54dBA Air velocity: 0.45m/s ±20%
Hepa filter: W1170 x D570 x H69mm HEPA filter efficiency: H13
Cahaya Tinggi:

ffu fan filter


hepa filter fan


Galvalume Frame Clean Room Booth Fan Filter Unit Project With T - Bar

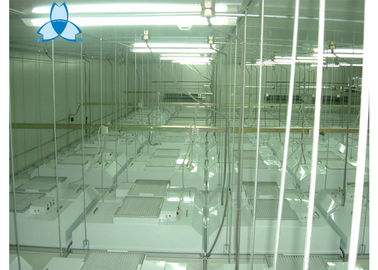

Fan filter unit (FFU) is a of type of air filtering equipment. It is used to supply purified air to cleanrooms or microenvironments by filtering out harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large clean room require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution



Fan filter unit can be connected for modularied application. It is widely applied to clean room, clean bench, clean production line, assembled clean room or partial class 100 clean booth.FFU includes fan and filter, and it is equipped with air volume adjustable spin-put centrifugal fan which intakes the air from the top of FFU. The clean air will be evenly blown out through the whole air outlet at a wind velocity ranging from 0.35 to 0.6 m/s.


Standard Size and Specification


Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Galvalume Frame Hepa Filter Fan , Hepa Filter Unit Project With T - Bar W1170 X D570 X H69mm




Testing in factory:


All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing




The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.


Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.


Why you choose ZHISHENG Company ?


Professional service:


Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.


Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.


After sales service:


We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.


Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
