Ceiling Air Diffuser For Large Airflow

Ceiling Air Diffuser For Large Airflow

MOQ: 50 pieces
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 1000 pieces
Detail Information
Place of Origin
Guangdong, China (Mainland)
Nama merek
Zhisheng
Sertifikasi
ISO9001
Model Number
ZS-BQ-250
diameter:
250mm 10 inci)
Bahan:
Paduan aluminium
Permukaan Selesai:
Dilapisi oleh bubuk
Warna:
RAL9016
Jenis:
semburan bola
Minimum Order Quantity:
50 pieces
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
1000 pieces
High Light:

hvac ceiling diffuser

,

return air diffuser

,

Ceiling Air Diffuser Untuk Aliran Udara Besar

Product Description

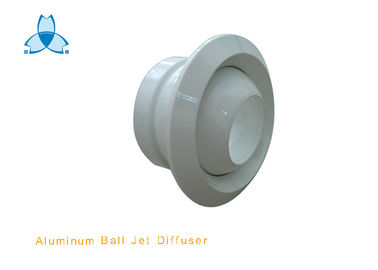

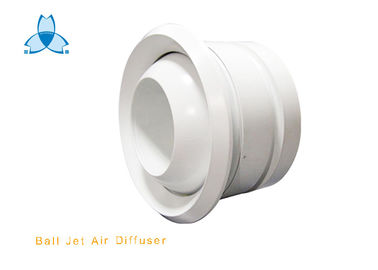

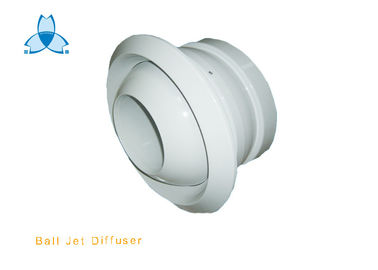

Aluminum Ball Jet Air Diifsuer Ball Spout For Large Airflow





Feature:



1.Aluminum alloy material



2.Long-distance air supply with less noise



3.The max up or down adjustment angle of the outlet is 30 degrees



4. The product with manual adjustment can be regulated 360 degress. Surface is with diamond

corner, can be opened by rotating left 450 on horizontal directivity



5.Sealed by specail seal member between sphere and exterior frame to achieve the best air tightness,

and keep the sphere direction under high air speed.



6. The outlets can be regulated by hand or electric devices to meet the change of the temperature.



7. Can add sector air valve or round air valver as your requriement



8. There is a ball spout in the exhaust hook of the outlet QP together with a draught ring and connecting pipe which can be installed in the round duct



9. While powder-coating finish or no painting for choice or color you prefer.



Functions:Ventilation, dispel heat



Application:



Mainly used in the area where the A/C outlets are far away from the people moving around,such as airport, gymnasium, theatre,museum etc.It is not proper to use ceiling outlets because they are not able to supply air uniformly to the corners and it is better to install ball spouts to supply side air.



Drawing of Ball Jet Diffuser :



Ceiling Air Diffuser For Large Airflow 0



Size and Specification:



Item Size ¢D1 (Neck) ¢D3 (Face) ¢D2 (outlet) ¢D4 (Inlet) L (depth) E (frame Height) Volume (m/h) Range(m)
100 100 149 48 73 76 22 450 30
125 125 173 62 90 95 24 600 30
150 150 199 76 108 110 23 800 30
200 200 265 107 152 138 27 1094 30
250 250 310 128 195 175 26 1368 30
315 315 378 180 240 200 30 1680 30
400 399 468 275 330 227 31 2710 30
450 448 523 275 375 220 32 3200 30
500 494 583 285 430 250 35 4000 30
630 625 700 295 550 320 22 5000 30
