|Face size:||24"x24”||Material:||Aluminum Alloy|
|Surface finish:||Powder coated||Color:||RAL9016|
|Type:||4-way ceiling diffuser|
hvac ceiling diffuser,
return air diffuser

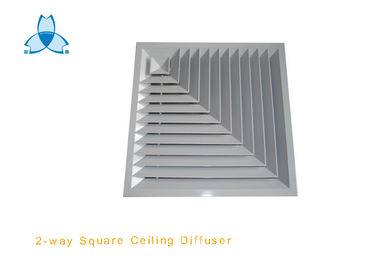

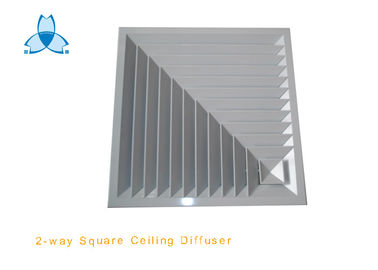

2 Way Square Air Diffuser For HVAC system
Frame:High quality extruded aluminum alloy
Core:High quality extruded aluminum ally profile
Material: thickness:0.8mm,1.0mm or 1.2mm Aluminum
Color for Diffuser : RAL9016 or RAL9010
Surface finish: powder coated/Anodized.
1. Excllent appearance , fit for supply airflow
2. The multiplayer cone divided the air into many layers of swift puffs, quickly mixing the inlet air and interior together
3.Louvered type core is fixed to frame with aluminum pins loaded with steel springs.Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper
4. Dampers can be installed so as to adjust airflow
It is used for supply and extract air applications for bathrooms kitchens and external walls of the buildings. It generally are widely used for air outlet of air conditioner.
